ST2 Download the full 3D ST2 spec sheet now...FREE!
REDESIGNED "EXTREME DUTY" CHASSIS ST2's chassis was designed using state-of-the-art 3D CAD technology where every single chassis member was first tested "virtually" before any prototype part was ever made. This ensures your home-build chassis will not only go together as per the plans, but it will perform with confidence. The chassis itself consists mostly of 1-5/16" o.d. mild steel tubing with strategically positioned structural bracing.	Click for more Chassis Detail
ALL NEW DOUBLE A-ARM REAR DRIVE SYSTEM The rear drive system of the ST2 consists of 4 double a-arm suspension with polyurethane bushings, rear hub carriers with automotive bearings & splined stub axles, a solid driveshaft with greasable u-joints & a very well designed a-arm housing which doubles as a modular engine mounting point. Up to 12" (305mm) of rear vertical wheel travel is achievable. You can set up the rear suspension with single or double coil-over-shocks too!
ADJUSTABLE CAMBER IN DOUBLE A-ARM FRONT SUSPENSION The front double a-arm suspension of the ST2 is one of the most advanced suspension/steering designs available. The steering rack & pinion system was designed for minimal "bump steer" conditions meaning you will have better control over your vehicle during off-road driving. Up to 9" (230mm) of front vertical wheel travel is achieveable. You can adjust the camber angle of the front wheels which provides "tunability" to your specific driving terrain & style. You can use the adjustable aluminum steering tie rods to fine tune steering geometry as well.	click for more Front Suspension Details
WHAT'S INCLUDED IN THE PLANS? We take extreme pride in the quality, accuracy & detail of our 3D construction plans. We have done the hard work so you don't have to. Simply open the plans & get started the same day! ST2 plans contain over 120 pages including 16 pages of chassis, 11 pages of front suspension, 6 pages of steering system, 13 pages of rear drive system, 16 pages of brake & throttle, 27 pages of detailed platework, 7 pages of bonus drawings, plus a full section on engine selection, materials lists, tools, safety, web resources, more, more, more! ST2 plans have both metric & imperial dimensions (millimeters & inches) & we show all American steel sizes.	Click here to purchase plans

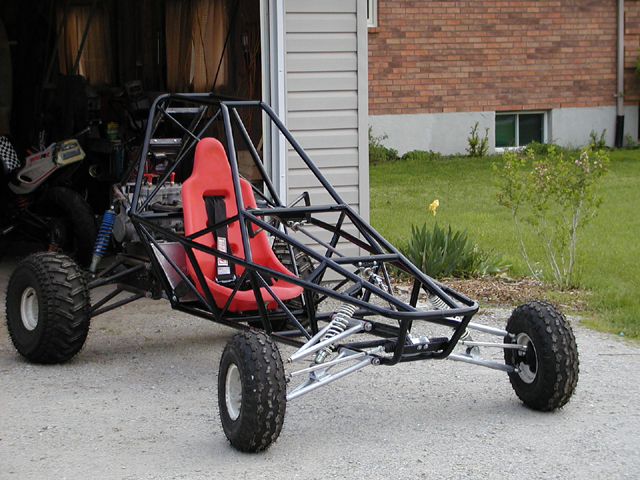

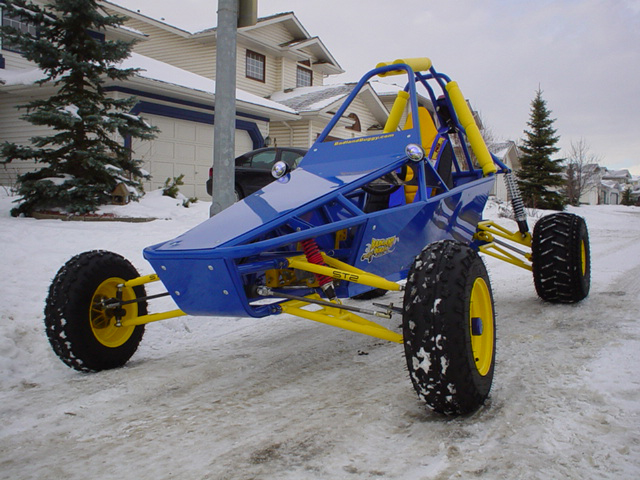

CUSTOMER'S ST2 PROJECTS We have a ton of customers who have built their own ST2 mini-sandrails. Check out their great photos! If you would like to add your ST2 project, simply e-mail us with your name, city, state/province, e-mail address, engine info, etc... All photos should be in either .GIF or .JPG format.	Click here to view customer projects
